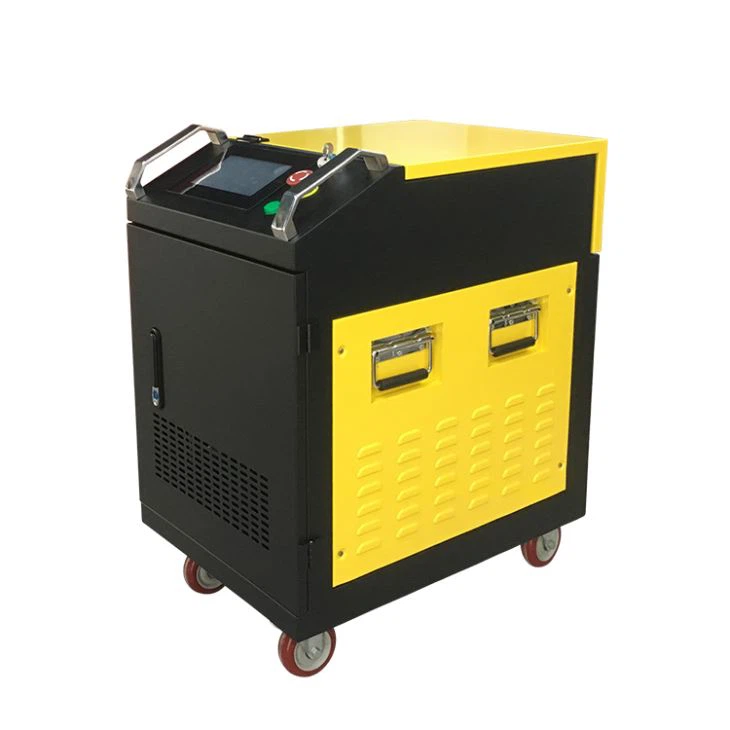

100W 200W Fiber Laser Cleaner For Rust Removal
Laser Power: 100W\200W
Laser Wavelength: 1064nm
100W 200W Fiber Laser Cleaner For Rust Removal
Product Introduction
◆ Fiber laser cleaner uses high-frequency and high-energy laser pulses to irradiate the surface of the workpiece. The coating layer can instantly absorb the focused laser energy, so that the oil stains, rust spots or coatings on the surface can be evaporated or peeled instantly, and the surface attachments or surface coatings can be effectively removed at a high speed. The cleaning method of the layer, and the laser pulse with a short action time will not damage the metal substrate under the appropriate parameters.
◆ Fiber laser cleaner is a new generation of high-tech products for surface cleaning. It is easy to install, operate and automate. The operation is simple. Turn on the power, the device begins to work. In addition, no chemical reagents, no media, no dust, no water are applied to the surface.
Performance Parameters
Model | MRJ-FL-C100 | MRJ-FL-C200（domestic） | |
Laser Power | 100W | 200W | |
Laser Wavelength | 1064nm | ||
Pulse Energy | 1.5mJ | 1-10mJ | |
Focal Length | F=160mm / F=254mm(Customizable) | ||
Clean Head Weight | 2.64kg | 2.25kg | |
Touch Screen | 7inch | ||
Cable Length | 3m(Customizable, up to 8m) | 5m(Customizable, up to 8m) | |
Scan Length | 1-100mm(Customizable) | ||
Scan Width | 1-20mm(Customizable) | ||
Working Temperature | 0℃-45℃ | ||
Storage Temperature | -15 to + 60℃ | ||
Operating Humidity | 10% - 90% | ||
Machine Weight | 67.84kg | 114.9kg | |
Machine Size | 670x430x800mm | 770x568x993mm | |
Cooling Method | Air Cooling | ||
Power Consumption | 1000W | 2000W | |
Input Power | Single-phase 220VAC ± 10%, 50-60Hz | ||
Optional Accessory | Hand-held / Automated | ||
Product Features
【1】 | Substrate non-contact cleaning, without damage. |
| 【2】 | High precision cleaning, good precision of position cleaning,selective washing. |
| 【3】 | Without any chemical cleaning fluid and no consume materials,safeand environment protecting. |
| 【4】 | Simple operation,hand-holdclean or with a mechanical hand to clean . |
| 【5】 | Good cleaning effect and save time. |
| 【6】 | Laser cleaning system is stability, almost no maintenance. |
Product Applications
〓 Metal surface derusting
〓 Surface paint removal paint treatment
〓 Surface without dirt, stains, dirt cleaning
〓 Surface coating, coating removal
〓 Oxide surface,Oil stain and contaminant cleaning
〓 Welding surface / spray surface pretreatment
〓 Stone figure surface dust & attachment cleaning
〓 Rubber/ plastic/ metal mold residue cleaning
Sample Display
