60W Laser Removal Machine for Paint Oxide Coatings

Equipment Introduction

◆ Laser cleaning technology is to use nanosecond or picosecond pulsed laser to irradiate the surface of the workpiece to be cleaned, so that the surface of the workpiece absorbs the focused laser energy in an instant, forming a rapidly expanding plasma (highly ionized unstable gas) to gasify or peel oil, rust, dust residue, coating, oxide layer or film layer on the surface, so as to remove the surface attachment efficiently.

◆ MRJ-FL-C60 laser cleaning machine is a small power laser cleaning machine. Laser cleaning is a high-tech and latest surface cleaning. It's environmentally friendly and no harm to human health;

◆ The whole machine is simple to operate, connect the power, then it can start to clean without chemical reagent, medium and water;

◆ 60W laser cleaning machine is lower power but it also can do cleaning work well. It is equipped with auto focus system, can do spherical surface cleaning with high cleanliness. The price is good enable it suitable for start-up companies.

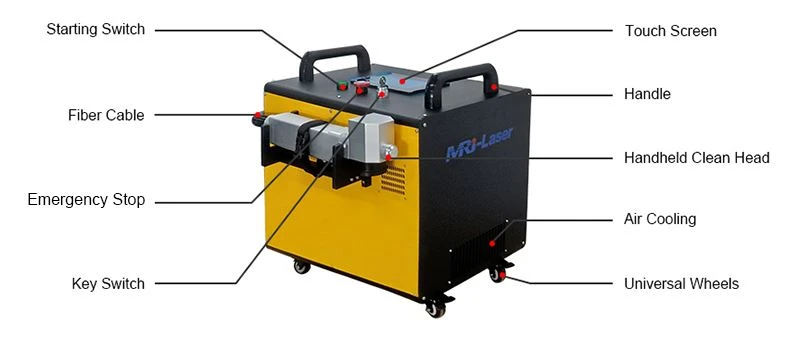

Product Details

Different clean heads can customized

Type A 90° beam output
color is optional

Type B 90° beam output
with interface

Type C 180° beam output

Applicable Substrate

In the field of industrial application, the laser cleaning object is divided into two parts: base material and cleaning material. The base material mainly has the surface pollution layer of various metals, semiconductor wafers, ceramics, magnetic materials, plastics and optical components. The cleaning material mainly includes rust removal, paint removal, oil removal, film removal / oxide layer and cleaning resin, glue, dust slag and so on.

Applicable Industries

Typical applications of laser cleaning include: mold cleaning, industrial rust removal, removal of old paint and film layer, pre-welding and post-welding treatment, deester removal of precision parts, decontamination and oxidation layer of electronic components, cleaning of cultural relics, etc. Widely used in metallurgy, mold, automobile, hardware, transportation, construction appliances, machinery and other industries.

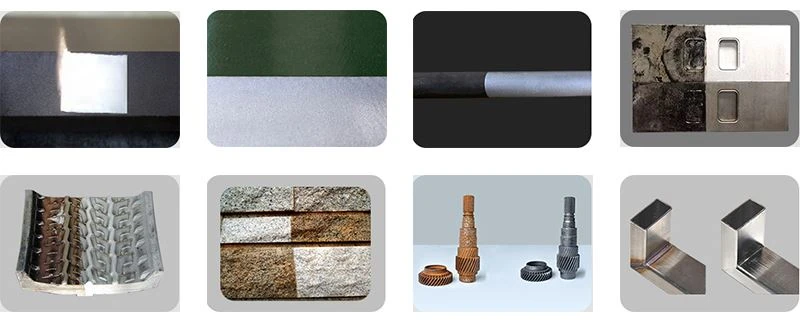

Sample Display

Knowledge

What is YAG laser?

The principle of YAG laser

YAG laser is a solid state laser based on yttrium aluminum garnet crystal. The chemical formula of yttrium aluminum garnet is Y3Al5O15, referred to as YAG. As with other solid-state lasers, the basic components of YAG lasers are laser working matter, pump source and resonator.

YAG lasers can be divided into continuous wave YAG laser, heavy frequency YAG laser and pulse laser according to the output waveform, and 1.μmYAG laser, frequency doubling YAG laser, Raman frequency shift YAG laser and tunable YAG laser; YAG laser can be divided into high power and medium power laser according to different doping; rod and slab YAG laser according to different crystal shape; high power and medium power laser according to different output power.

a solid laser cutting machine will pulse laser beam with wavelength of 1064 nm after beam expansion, reflection, focusing, radiation heating material surface, surface heat through heat transfer guide internal diffusion, by digital accurate control of laser pulse width, energy, peak power and repetition rate parameters, instant material melt vaporization evaporation, so through the numerical control system to achieve a predetermined trajectory of cutting, welding, drilling.
