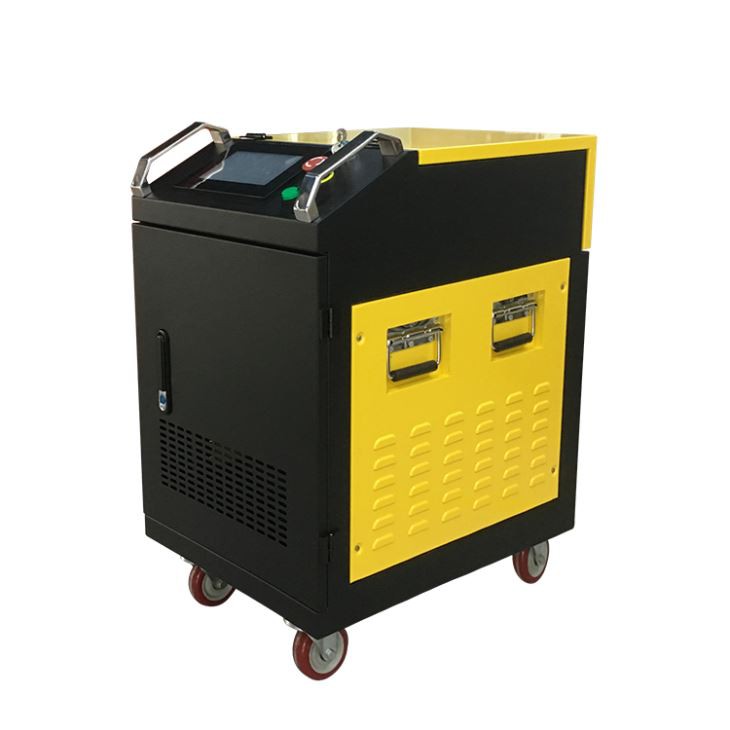

100W 200W Fiber Laser Cleaner For Paint Removal
Laser Power: 100W\200W
Laser Wavelength: 1064nm
100W 200W Fiber Laser Cleaner For Paint Removal
Equipment Introduction
◆ MRJ-FL-C Series laser cleaner is a high-tech and latest product of surface cleaning, it is easy to install, operate and automated;
◆ The whole machine is simple to operate. Connect the power, then it can start to clean without chemical reagent, medium and water;
◆ With auto focus, spherical surface cleaning, high cleanliness, can remove the resin, oil contamination, stains, dirt, rust, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue;
◆ Mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires and petrochemical industries.
Performance Parameters
Model | MRJ-FL-C100 | MRJ-FL-C200（domestic） | |
Laser Power | 100W | 200W | |
Laser Wavelength | 1064nm | ||
Pulse Energy | 1.5mJ | 1-10mJ | |
Focal Length | F=160mm / F=254mm(Customizable) | ||
Clean Head Weight | 2.64kg | 2.25kg | |
Touch Screen | 7inch | ||
Cable Length | 3m(Customizable, up to 8m) | 5m(Customizable, up to 8m) | |
Scan Length | 1-100mm(Customizable) | ||
Scan Width | 1-20mm(Customizable) | ||
Working Temperature | 0℃-45℃ | ||
Storage Temperature | -15 to + 60℃ | ||
Operating Humidity | 10% - 90% | ||
Machine Weight | 67.84kg | 114.9kg | |
Machine Size | 670x430x800mm | 770x568x993mm | |
Cooling Method | Air Cooling | ||
Power Consumption | 1000W | 2000W | |
Input Power | Single-phase 220VAC ± 10%, 50-60Hz | ||
Optional Accessory | Hand-held / Automated | ||
Product Features
〓 Non-contact cleaning, no damage to workpiece.
〓 Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
〓 No need chemical detergent, no consumable. Safe & environment-friendly.
〓 Easy to operate ,Either portable or equipped with robot for automatic cleaning.
〓 High cleaning efficiency, time-saving.
〓 Stable laser cleaning system, free maintenance.
Application
〓 Metal surface rust removal
〓 Paint cleaning
〓 Oil stain, contaminant cleaning
〓 Coating surface cleaning
〓 Welding/Coating surface pre-treatment.
〓 Stone figure surface dust & attachment cleaning.
〓 Plastic mould residues cleanin
Sample Display
