30W Mini Portable Fiber Laser Engraving Machine
Laser Power: 30W
Laser Wavelength: 1064nm

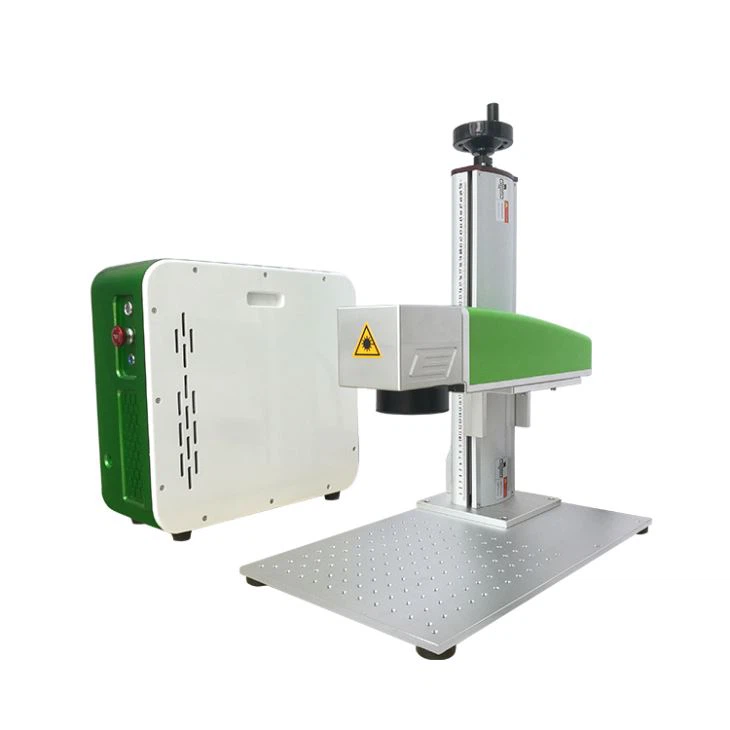

30W Mini Portable Fiber Laser Engraving Machine
Equipment Introduction
◆ MRJ-FL series fiber laser marking machine is developed by the world's most advanced laser technology;
◆ This laser engraving machine has a professional engineering design, very portable, easy to display in different plane;
◆ It adopts new appearance design and simple structure, to meet kinds of marking requirements for a variety of complex workpieces.
Performance Parameters
Model | MRJ-FL-20B | MRJ-FL-30B | MRJ-FL-50B |
Laser Power | 20W | 30W | 50W |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Beam Quality | M2<1.6 | M2<1.6 | M2<2.0 |
Repetition FREQ | 20-80KHz | 30-80KHz | 50-120KHz |
Marking Field | 300mmx300mm | 300mmx300mm | 300mmx300mm |
Marking Depth | ≤1.2mm | ≤1.5mm | ≤2.0mm |
Marking Line Speed | ≤14000mm/s | ≤14000mm/s | ≤14000mm/s |
Minimum Line Width | 10um | 10um | 10um |
Minimum Character | 0.15mm | 0.15mm | 0.15mm |
Repetition Precision | ±0.005mm | ±0.005mm | ±0.005mm |
Power Consumption | ≤500w | ≤600w | ≤800w |
Maintenance-free Time | 100,000 hours | 100,000 hours | 100,000 hours |
Input Power | Single Phase 110V/220V/50-60Hz | ||
Cooling Method | Air Cooling | Air Cooling | Air Cooling |
Applications
◆ Compared to various large laser engraving machines, the portable laser engraving machine can be carried for engraving and printing.
◆ It has maintenance-free characteristics, saving time and indirectly improving work efficiency.
◆ This engraving machine is clear, fine, and low energy consumption.
