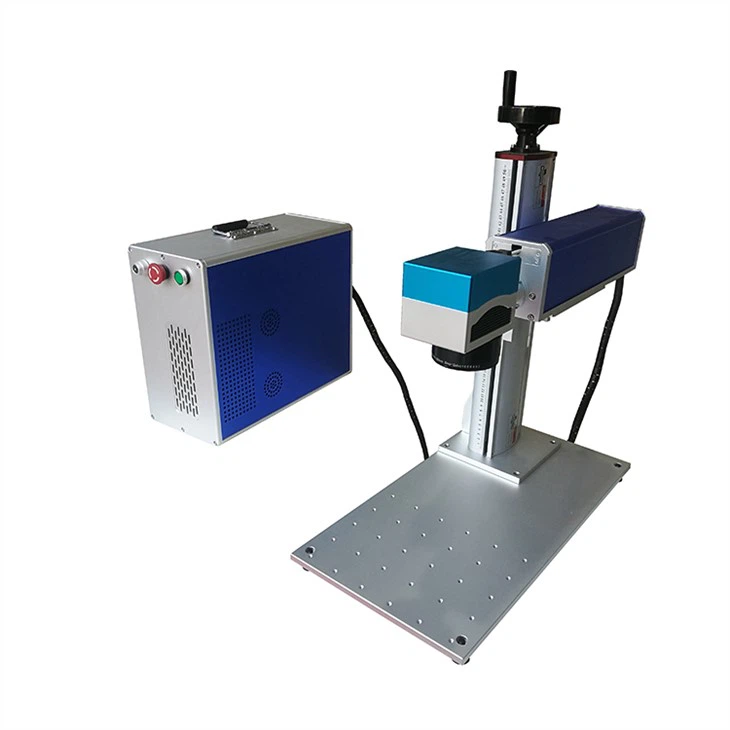

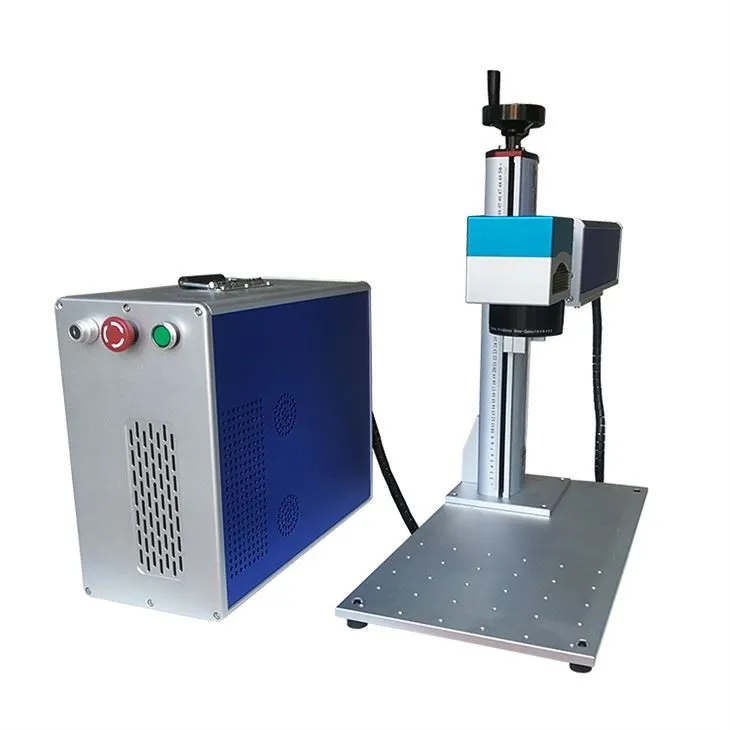

30W JPT Mopa Fiber Laser Engraving Machine
Laser Power: 30W
Laser Wavelength: 1064nm
30W JPT Mopa Fiber Laser Engraving Machine
Product Characteristics
◆ MRJ-FL-30D has excellent beam quality and high precision marking effect;
◆ The whole machine is seperated with two structures, with light weight and small size. It can be placed on a table or other work bench.
◆ It is equipped with a JPT mopa laser, which not only can mark on any metals and some non-metals, but also do color marking on stainless steel.
◆ The galvanometer scanning system has stable performance, high marking speed and repeat positioning accuracy;
◆ No need any maintenance for laser, and working lifetime is up to 100000 hours.
Performance Parameters
Model | MRJ-FL-20D | MRJ-FL-30D | MRJ-FL-50D |
Laser Power | 20W | 30W | 50W |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Beam Quality | M2<1.6 | M2<1.6 | M2<2.0 |
Repetition FREQ | 20-80KHz | 30-80KHz | 50-120KHz |
Marking Field | 300mmx300mm | 300mmx300mm | 300mmx300mm |
Marking Depth | ≤1.2mm | ≤1.5mm | ≤2.0mm |
Marking Line Speed | ≤14000mm/s | ≤14000mm/s | ≤14000mm/s |
Minimum Line Width | 10um | 10um | 10um |
Minimum Character | 0.15mm | 0.15mm | 0.15mm |
Repetition Precision | ±;0.005mm | ±;0.005mm | ±;0.005mm |
Power Consumption | ≤500w | ≤600w | ≤800w |
Maintenance-free Time | 100,000 hours | 100,000 hours | 100,000 hours |
Input Power | Single Phase 110V/220V/50-60Hz | ||
Cooling Method | Air Cooling | Air Cooling | Air Cooling |
Marking Applications
◆ It can engrave and mark on all metals: gold, silver, titanium, copper, alloy, zinc, aluminum etc.
◆ It can also mark on many materials such as steel, manganese steel, magnesium, stainless steel, carbon steel, mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition.
Sample Display
