50W 60W Fiber Laser Cleaning Machine For Weld Cleaning

Product Introduction

◆ The spot welding process of the laser welding machine has been used to complete the welding of aluminum-plated steel. However, after the welding, there is a layer of gray-black material at the weld seam. This gray material is left after the reaction of silicon. This residue can be dealed with by using strong acidic substances to clean, but it violates the concept of energy conservation and environmental protection, so new and green cleaning methods are the best way.

◆ It is said that the laser is omnipotent. It can not only weld metal but also clean equipment. The use of laser cleaning equipment to clean the welds can not only cleanly remove residues but also will not harm the grassroots, it is also a green and environmentally friendly cleaning method.

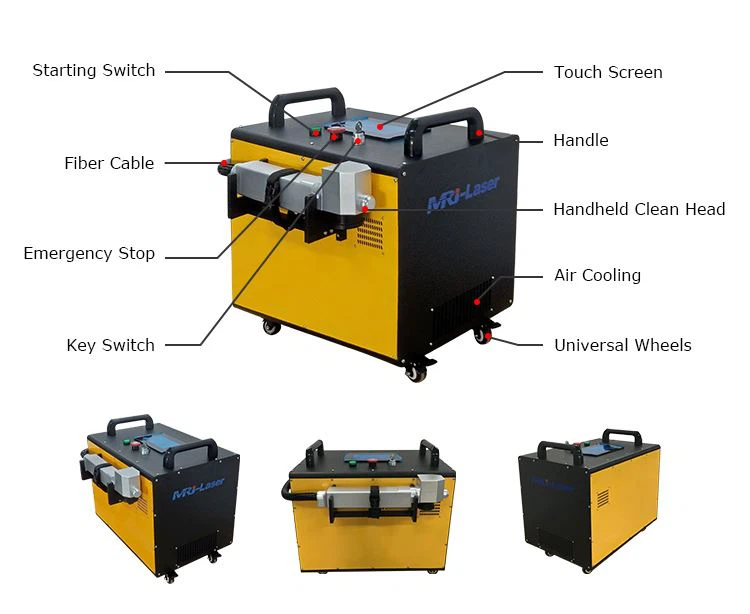

Product Details

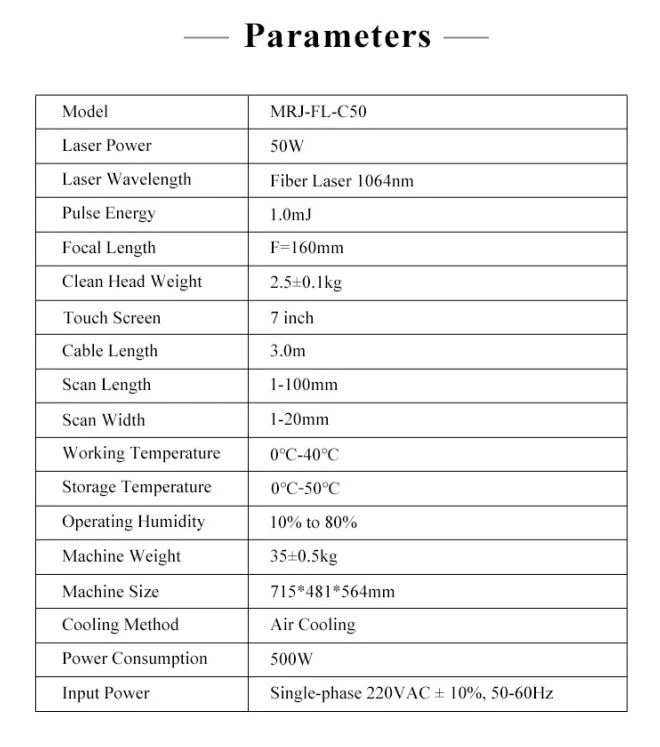

Product Parameters

Advantages of Laser Cleaning

The cleaning process of laser cleaning equipment relies on the characteristics of the light pulse generated by the laser, based on the photophysical reaction caused by the interaction between the high-intensity beam, the short-pulse laser, and the pollution layer.

◆ Laser cleaning is a "green" cleaning method. It does not need to use any chemicals and cleaning fluids.

◆ The cleaned waste is basically solid powder, small in size, easy to store, recyclable, and can easily solve the problems caused by chemical cleaning. There are no environmental pollution problems; the non-grinding and non-contact of laser cleaning make these problems easy to solve.

◆ The laser can be transmitted through optical fiber, and it can be used with robots and robots to easily achieve long-distance operation. It can clean parts that are not easy to be reached by traditional methods, to ensure the user's safety.

◆ laser cleaning can remove all kinds of pollutants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning, and it can also selectively clean the pollutants on the surface of the material without damaging the surface of the material.

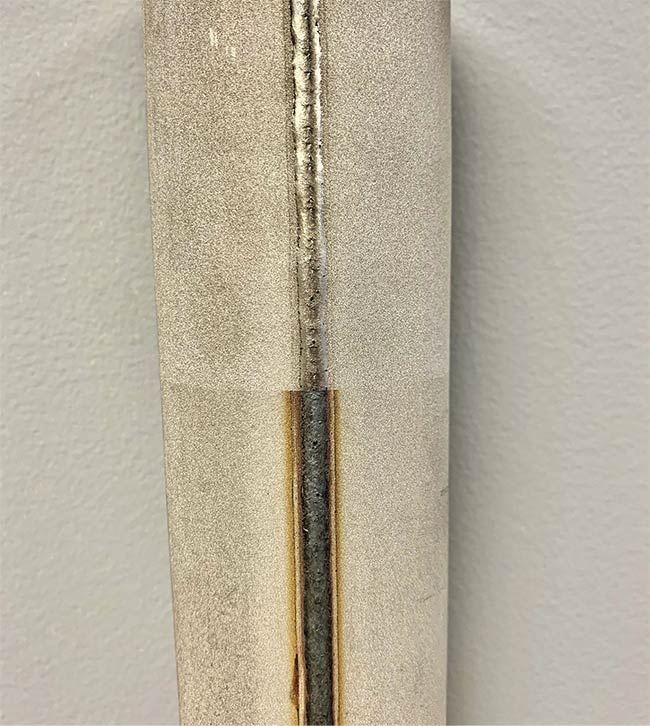

Cleaning Samples

What Is Welded Seam

◆ Welded seam (weld）refers to, by high temperature of the welding heat source, to melt and connect the welding rod and the metal at the joint. After the weld metal is cooled, the two weldments are connected into a whole. According to the shape of the weld metal and the mutual position of the weldments, there are butt welds, fillet welds, plug welds and electric riveting. Butt welds are often used for the splicing of plate and section steel; fillet welds are often used for lap joints; plug welds and electric riveting are less used, and are only considered for reducing the lap length of weldments.

◆ According to the different forms of weld joints, it can be divided into five types: butt welds, fillet welds, plug welds, slot welds and end welds.

1) Butt weld. A weld between the groove surface of a weldment or between the groove surface of a part and the surface of another part.

2) Fillet weld. Welds welded along the intersection of two orthogonal or nearly orthogonal parts.

3) End welding seam. Form the weld formed by the end joint.

4) Plug the weld. The two parts are superimposed, one of which has a round hole, and the weld formed by welding the two plates in the round hole. Only the weld with a constant angle in the hole is not plug welded.

5) Slot welds. The two plates are superimposed, one of which has a long hole, and the weld of the two plates is welded in the long hole. Only the fillet weld is not slot welding.
