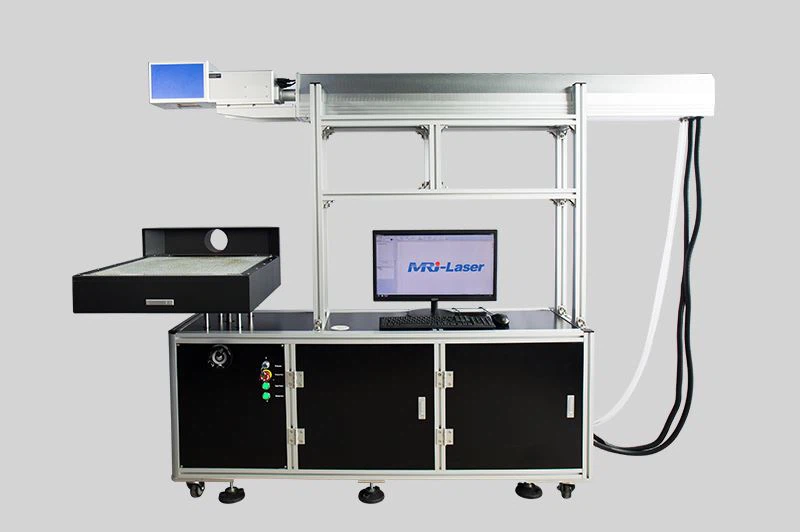

100W Large Format CO2 Laser Marking Engraver
Equipment Introduction
◆ MRJ-CO2-3D100A CO2 laser marking machine is designed to realize large scan field laser marking and small focal beam spot;
◆ This equipment is suitable for large scan field laser engraving and cutting for leather, cloth, paper, rubber, PVC, wood, glass,plastic etc.
System Characteristics
◆ Three-axis dynamic system, larger marking field and more fine beam spot diameter;
◆ Integrated data collection, electronic control, mechanical servo, optical scanning and other functions;
◆ Imported RF CO2 laser, high power, fine beam spot quality, stable performance;
◆ Totally enclosed and maintenance-free laser optical system, no need adjustment, "install and play" implemented;
◆ Adopted the optimal designing of electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability;
◆ Smaller focus beam spot and high energy density, suitable for laser engraving and cutting on large field materials.
Sample Display
Features
| 1 | Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased. |
| 2 | Original USA coherent CO2 laser tube with long working lifetime,is characterized by large power, high-quality light spot, excellent performance, stable power and long service life(20k hours). |
| 3 | Tiny beam spot , making more precision. |
| 4 | The 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc. |
| 5 | The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition. |
| 6 | High-precision and high-speed marking/cutting, efficiency is 20% higher than other similar models. |
| 7 | Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. |
| 8 | Industrial computer support Windows 7, XP or 10. |
| 9 | Strong anti-jamming ability. |
Model | MRJ-CO2-3D100A | ||
Laser Power | 100W | ||
Laser Wavelength | 10600nm | ||
Pulse FREQ. | 1-100KHz | ||
Power Consumption | 2000W | ||
Laser Class | Class 4 | ||
Marking Range | ≤1200mmX1200mm | ||
Min. Line Width | 0.15mm | ||
Running Speed | ≤7000mm/s | ||
Net Weight | Around 150KG | ||
Cooling Method | Water Cooling | ||
Cooling System Size | 580mmx290mmx470mm | ||
Equipment Size | 1916mmx611mmx1482mm | ||
Working Environment | Temperature 15℃-30℃; humidity 30-80% | ||
Input Power | 220VAC/50Hz/25A | ||
