Portable Rust Removal Metal Remover Fiber Mould Outdoor Paint Laser Cleaning Machine
Laser Power: 200W
Laser Wavelength: 1064nm
We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to deliver you with great provider of processing for engraving on glasses, rust cleaning, laser engraving machine. Our many years of experience in the field have allowed us to develop extensive and solid purchasing channels, which ensure the quality of our products. Talents are the key to our company's development, and we insist on the pursuit of the concept of common progress of all employees in both material and spiritual aspects. After several years of market cultivation, our company has formed its own unique development mode and unique business positioning.

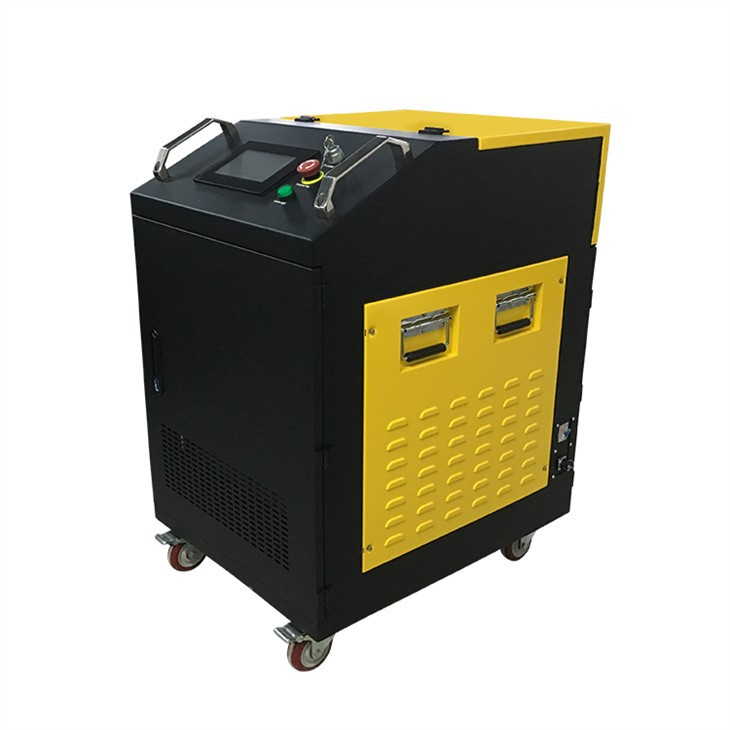

200W Mini Portable Laser Rust Removal
Product Introduction
The laser cleaning machine is a high-tech product of new generation of surface cleaning. It has the advantages of easy control, easy automation integration, no chemical reagents, conformable surface cleaning, high cleaning cleanliness and high precision. It is highly efficient, environmentally friendly, reliable. It also can solve a variety of problems that traditional cleaning cannot solve.
Product Characteristics
【1】 | Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., and causing surface materials to sublimate and evaporate. |
【2】 | The focused laser beam is capable of accurately evaporating surface objects or dirt. |
【3】 | Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface. |
【4】 | By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily. |
Product Application
● Metal surface rust removal.
● Paint cleaning.
● Oil stain, contaminant cleaning.
● Coating surface cleaning.
● Welding and coating surface pre-treatment.
● Stone figure surface dust & attachment cleaning.
● Plastic mould residues cleaning.
Knowledge:
what are the differences and characteristics between transverse mode and longitudinal mode?
◆ It is wrong to say that modes can be divided into vertical and horizontal modes. These two are not opposite concepts, either "horizontal or vertical".
◆ Firstly, transverse mode describes the energy distribution on the laser spot. The transverse mode can be seen from the intensity distribution on the cross section of the laser beam.

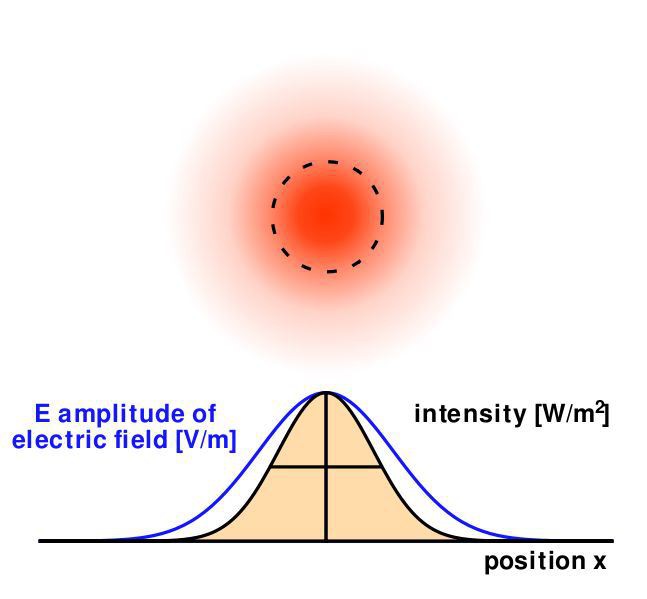

◆ As shown in the figure, the cross-section intensity distribution curve of the Gaussian beam is high in the center and reduced in the radial direction, conforming to the Gaussian distribution.
◆ Because the center is a spot of light. It is called TEM00 fundamental mode, which is the simplest transverse mode. For the naming conventions for TEMxy beam, refer to the following figure.
◆ Secondly, longitudinal mode is related to the length of the laser cavity, so it is called "longitudinal mode", which describes the laser frequency. In theory, laser cavity can produce thousands of equidistant frequencies of light. Because a gain medium produces maximum gain on a certain frequency (resonant frequency) of light, the other frequencies of light are suppressed. Namely the resonator will filter the specific resonance frequency of laser, so generally the laser only outputs a specific frequency laser. Longitudinal mode is in terms of frequency. A standing wave is formed along the axis of the cavity (longitudinal), and the node number of the standing wave is determined by “q”. ◆ The longitudinal field distribution in cavity represented by integer Q is usually called longitudinal mode of cavity. Different values of Q correspond to different vertical modules. The longitudinal mode Q alone determines the resonant frequency of the mode.
◆ The difference between “transverse” and “vertical” can be considered from the structure of the cavity. The distribution of transverse mode (shown in the shape of light spots) is related to the transverse (XY plane) structure of the cavity. The spacing of the longitudinal mode (represented by different frequencies) is related to the longitudinal dimensions of the cavity.
◆According to the above statement, it is not said that the laser mode is longitudinal mode and transverse mode. These are just two concepts that we use to describe lasers in different ways.
◆ In fact, every laser beam has its vertical mode and transverse mode, just describe the properties of the laser beam from different aspects. It is equivalent that describing someone's height and weight. They are not separated definitions. Someone says that "the laser beam is longitudinal mode" or "the laser beam is transverse mode", which is a wrong understanding.
We are confident that our quality Portable Rust Removal Metal Remover Fiber Mould Outdoor Paint Laser Cleaning Machine will be the best choice for our customers to enhance their brand image. Severe industry competition and survival pressure make us have more and more stable and excellent product quality. Since the establishment of the company, in the process of wholeheartedly providing high-quality products and services for customers, our company always adheres to the first strategy of enterprise development with information resources, drives product innovation with service innovation and quality innovation with scientific and technological progress.
