100W 200W Mopa Fiber Laser Cleaning Machine for Metal Rust Paint Removal

100W 200W Mopa Fiber Laser Cleaning Machine for Metal Rust Paint Removal

Model: MRJ-FL-C200B
Laser Power: 200W
Laser Wavelength: 1064nm
Send Inquiry
Product Introduction

In the pursuit of quality, our company's products have won unanimous praise from customers at home and abroad, and is in a leading position in the industry of Optical Accessories, 30W Flying CO2 Laser Engraving Machine, 50W Flying Fiber Laser Engraving Machine. At the same time of economic development, our company vigorously promotes the construction of corporate culture, cultivates the common values and sense of honor of employees. Since upholding the principle of fairness, we respect each other on the basis of recognizing the differences between people, and at the same time, give equal opportunities to enterprising people. In the fierce market competition, our company has always ranked first in the peer list by virtue of high-quality products and considerate service. We are confident that you will be able to choose the products you need from our designed product line.

200W Laser Cleaning Machine Paint Removal


Product Introduction

200W laser cleaning machine is medium power laser rust removal machine. It can clean iron rust, aluminum rust and other rust and oxides on metals. It adopts the laser source made in China or from abroad as you request.


Product Details

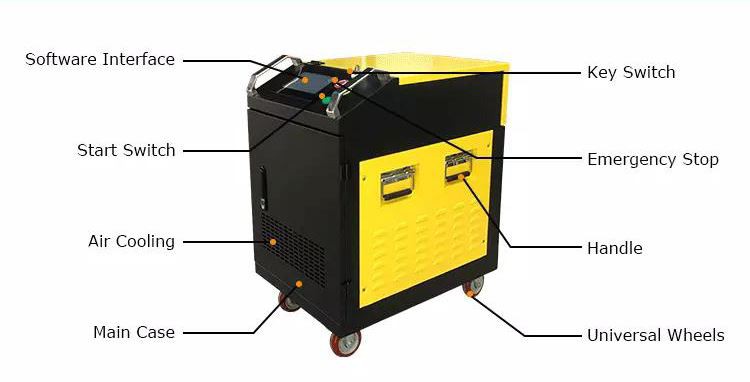

H3991b4cb67c34f2f8fc7a2ce0d884433d.png_(1)

Product Features

 1

High-Tech & non-contact cleaning

No need any chemical liquid, no consumables, safety and environmental protection.

 2

Customizable personalized cleaning head

Simple structure, light weight, ergonomic design and easy to operate.
Imported high-speed scanning motors from USA, small size, high precision and good stability.

 3

Unique self-developed cleaning software control system

Clear and concise control interface, easy to operate, all parameters can be set and adjusted base on user’s demands for high performance controlling of laser and clean head.
More uniform cleaning surface, no any damage to substrate of components, selective cleaning of precise location and accurate size.

 4

Professional laser cleaning optical design

High damage threshold of scanning mirror and F-theta lens.
Continuously long-time working more than 10 hours per day.

 5

High cleaning efficiency and saving time

Simple structure, stable performance, maintenance-free.
Automated cleaning by hand-held or work with manipulator.

Application Field

 1 Rust and paint removal on metal surfaces.
 2 Rubber and tyre mold residue cleaning.
 3 Pretreatment of welded joint and spraying surfaces
 4 Metal surface oil and dirt removal .
 5 Metal surface paint, coating and oxide layer removal.
 6 Dust and attachments removal of Stone statue surface.
 7 Particles and oxides removal of semiconductor & microelectronic components, memory templates, silicon templates and the component pins.
 8 Urban graffiti, printing cylinders, Lubricating oil on industrial parts of precision machinery, external walls of buildings, nuclear pipelines and other dangerous industries cleaning.


Sample Display

portable 200W fiber laser rust removal suppliers

Knowledge

Laser Cleaning & Traditional Cleaning

Traditional industrial cleaning is mostly carried out by chemical agents and mechanical methods. As the environmental protection regulations become more and more strict, people's awareness of environmental protection and safety are increasing today. Chemical cleaning methods will be less and less desirable, and the mechanical methods bring the irreversible damage to the mold. In the process of looking for environmental protection, non-destructive and low cleaning cost, laser cleaning comes into being. Laser cleaning has the characteristics of no grinding, no contact, no consumables, and can be applied to complex cleaning environment. It is considered to be the most reliable and effective cleaning method at present.

Compared with the traditional cleaning methods such as mechanical friction cleaning, chemical corrosion cleaning, liquid solid strong impact cleaning and high-frequency ultrasonic cleaning, laser cleaning has obvious advantages.

(1) Laser cleaning is a "green" cleaning method, which does not require the use of any chemical agents and cleaning liquid. The waste is basically solid powder, small in size, easy to store, recyclable, and can easily solve the environmental pollution caused by chemical cleaning.

(2) The traditional cleaning method is usually contact cleaning, which exerts mechanical force on the surface of the object to be cleaned. The surface of the damaged object or the cleaning medium is attached to the surface of the object to be cleaned, which cannot be removed, resulting in secondary pollution. The non-abrasive and non-contact nature of laser cleaning can readily solve these problems.

(3) The laser can be transmitted through optical fiber, which can be coordinated with robot hand and robot to achieve remote operation conveniently and can clean parts that are not easily reached by traditional methods. This can ensure the safety of personnel when used in some dangerous places.

(4) Laser cleaning can remove various types of pollutants on various material surfaces to achieve a degree of cleanliness that cannot be achieved by conventional cleaning.It can also selectively and precisely clean the pollutants on the surface of the material without damaging the surface.

(5) High efficiency of laser cleaning, saving time. Just hold the handle, turn on the switch, scan the surface, the machine begins to clean.

(6) Although the one-time investment in the early stage is high, the laser cleaning system can be used stably for a long time with low operating cost.


Model

MRJ-FL-C200(domestic)

Laser Power

200W

Laser Wavelength

1064nm

Pulse Energy

1-10mJ

Focal Length

F=160mm / F=254mm(Customizable)

Clean Head Weight

2.25kg

Touch Screen

7inch

Cable Length

5m(Customizable, up to 8m)

Scan Length

1-100mm(Customizable)

Scan Width

1-20mm(Customizable)

Working Temperature

0℃-45℃

Storage Temperature

-10 to + 60℃

Operating Humidity

10% - 90%

Machine Weight

114.9kg

Machine Size

770x568x993mm

Cooling Method

Air Cooling

Power Consumption

2000W

Input Power

Single-phase 220VAC ± 10%, 50-60Hz

Optional Accessory

Hand-held / Automated


Sticking to your belief of 'Creating solutions of high quality and generating buddies with people from all around the world', we always put the fascination of customers to start with for 100W 200W Mopa Fiber Laser Cleaning Machine for Metal Rust Paint Removal. We guarantee to provide each customer with professional and refined in-sales and after-sales service. We are keeping durable business relationships with more than 200 wholesalers all over the world.
