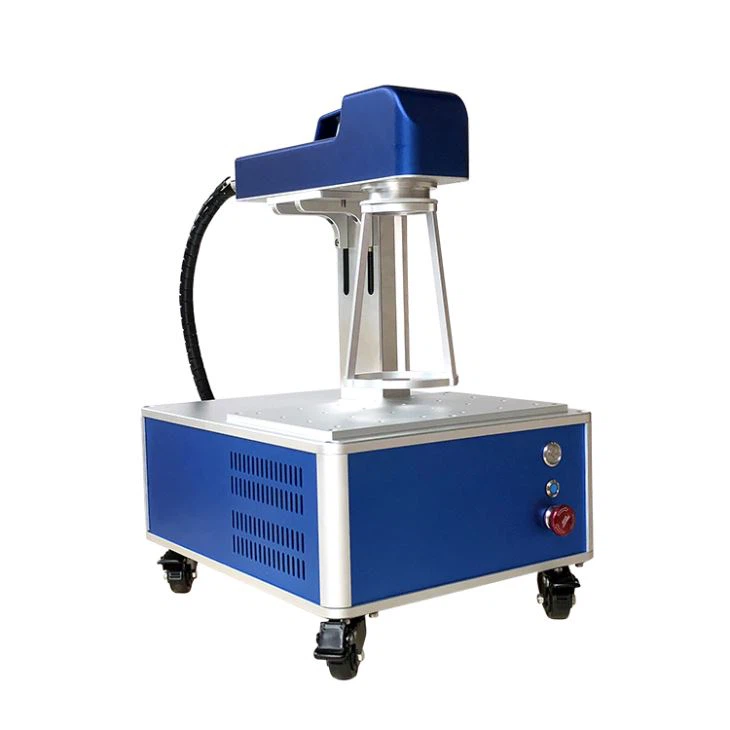

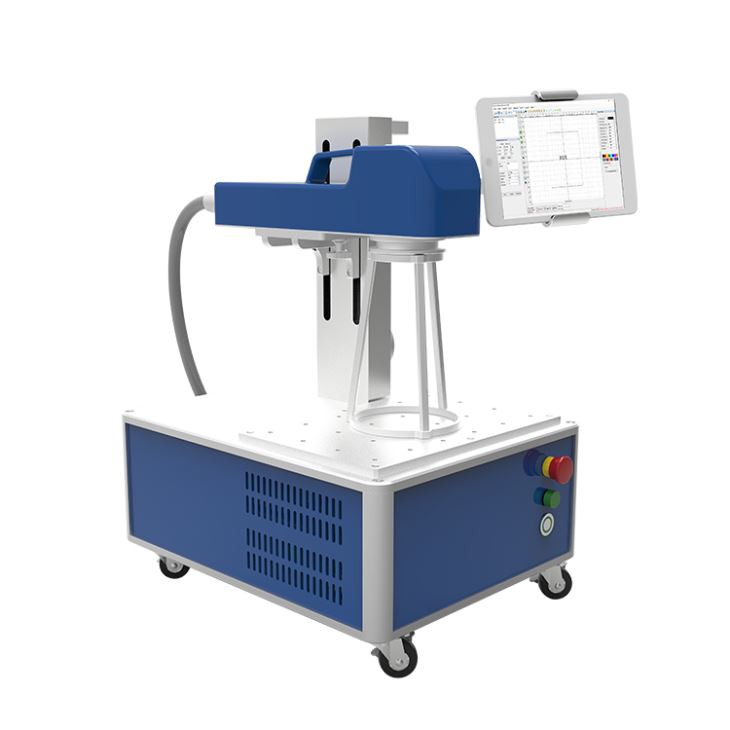

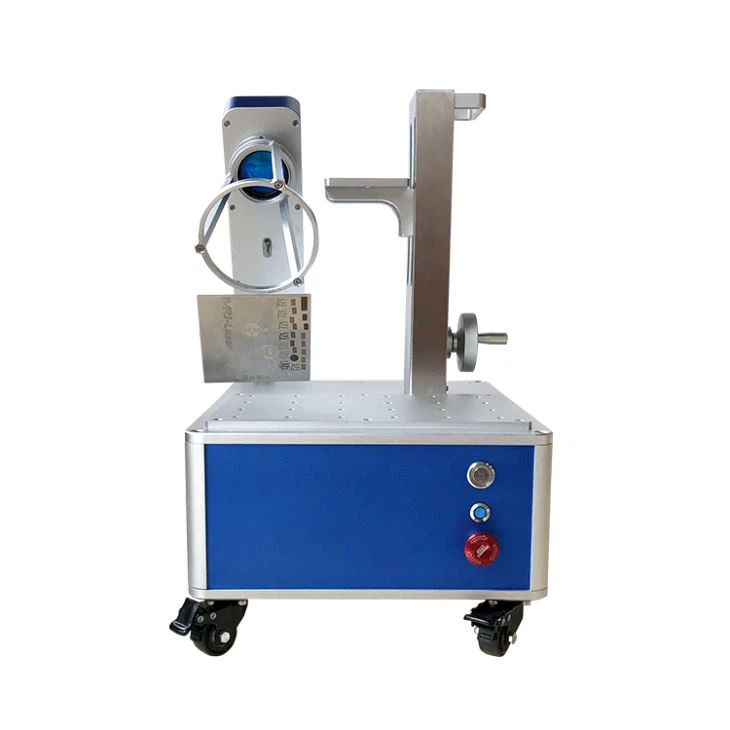

Equipment Introduction

◆  MRJ-FL-SC serial hand-held fiber laser marking machine is developed by the world’s most advanced laser technology;
◆  It is integrated with galvo-scanner, optical system, fiber collimator and hand-held marking head at one system; it's the world's smallest mobile hand-held laser marking machine;
◆  It adopts optical path integrated with sealing design and fixed focus plane to be fast focus and realizes the high precision and rapid automatic marking by hand-held from multi-angle;
◆  It has unique industrial design structure and control software and can work with tablet PC, meet various of marking requirements for workpiece which is complex and hard to put on workbenches.

Advantages

● Integrated seal structure with fixed focus frame, fast focusing and portable;

● Full range and high-precision auto marking system;

● Professional engineering design with optional ipad or computer controller;
● Meet high requirements for complex and hard to place on platform work-pieces.

Product Details

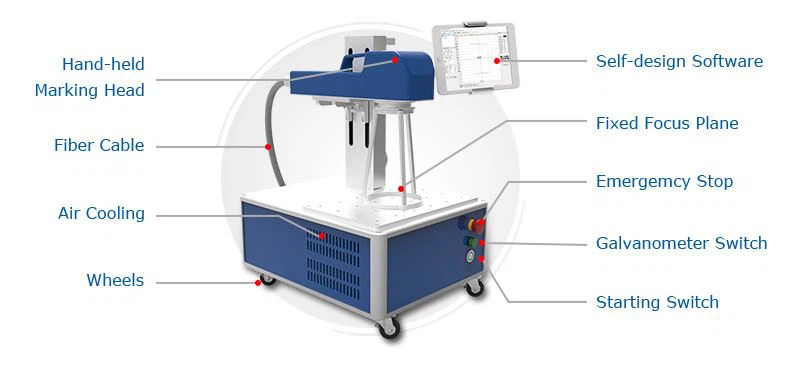

System Characteristics

◆ Fiber laser has excellent beam quality and high precise marking effect;

◆ Adjustable marking field for hand-held, the max marking field is 110x110mm;

◆ Compact structure design, stable performance, high marking speed, high repeat positioning accuracy;

◆ Core components are optimally designed with electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability;

◆ No need any maintenance for laser, and working lifetime is up to 100000 hours;

◆ Whole machine with small size, light weight, equipped with universal wheels which can move flexibly.

Knowledge:

Briefly reason analysis of uneven marking effect of fiber laser marking machine(1)

First, the use of partial focus to mark a certain range of content

Because each focusing mirror has a corresponding range of focal depth, using partial focus will easily lead to that when marking a large range of pattern, the edge is at the critical point of focal depth or beyond the range of focal depth. Therefor, it is easy to cause uneven effect. Therefore, laser energy must be taken into considered in the method of partial focus marking.

Two, the laser output spot is blocked, that is, the light spot formed by the laser beam going through the galvanometer and field mirror gets partly missing, not round enough.

If the laser output head, the fixing fixture and the galvanometer are not adjusted properly, it will lead to the blocking of some light spots when the laser passes through the galvanometer; and the light spots presented on the frequency doubling plate after focusing by the field mirror are non-circular, which may also lead to uneven effect.

There is also a case is that the dipole deflector lens is damaged. The laser beam is not reflected well as it passes through the damaged area of the lens.

Therefore, the laser energy of the beam passing through the lens damaged area is not consistent with that of the lens undamaged area, and the laser energy acting on the material is also different, thus making the marking effect uneven.
